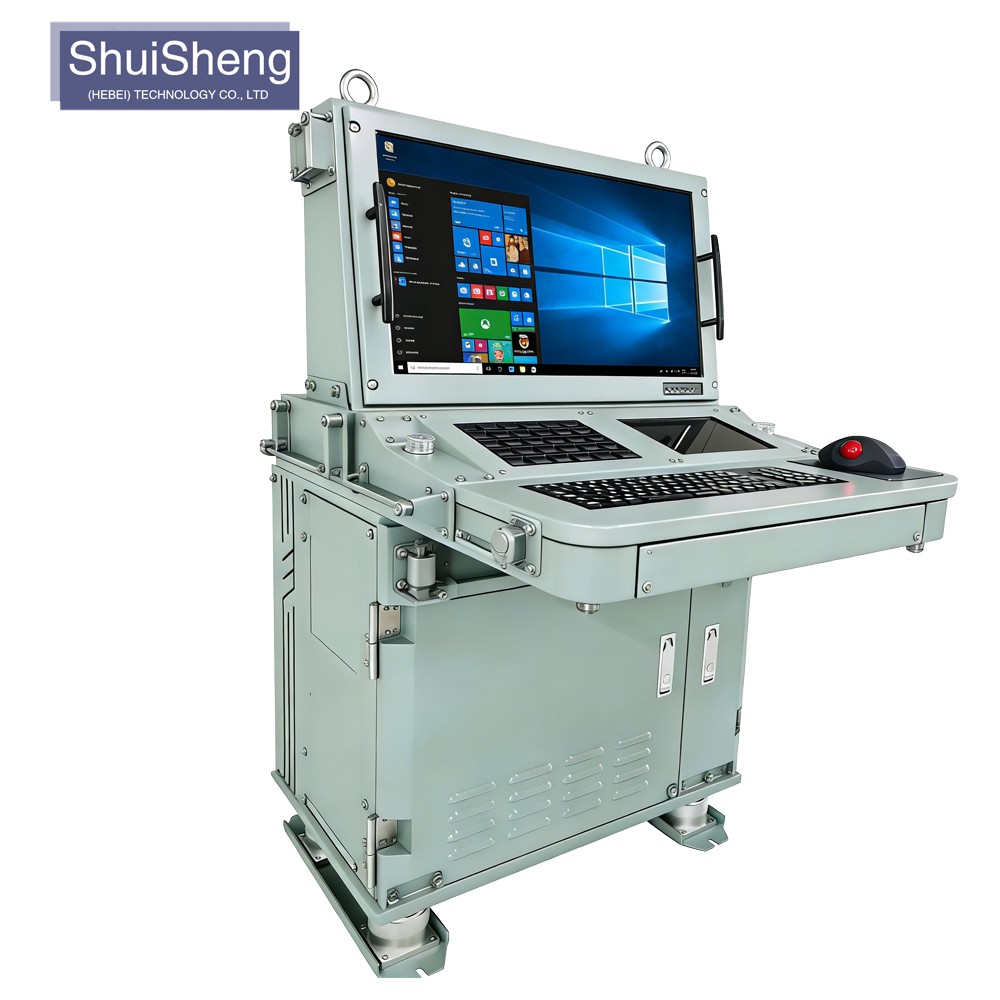

Rugged Marine & Aviation Control Console
High-Tech Integrated Operation Center Desk for Critical Environments
- Product Material：Available in: galvanized steel sheet, 304 stainless steel, 316L stainless steel, carbon fiber, aluminum alloy (and other materials)Ingress Protection (IP) Rating：Made to order
Salt Spray Rating：Made to order
Vibration Resistance Rating：Made to order
Product Overview:
A mission-critical, modular workstation engineered for 24/7 operation in the most demanding control environments. It combines exceptional durability with ergonomic design, serving as the nerve center for maritime operations and aviation command.
Key Features:
- IP68-rated waterproof & corrosion-resistant chassis, meeting rigorous maritime environmental standards.
- Vibration and shock-resistant construction, built to perform in high-motion and high-activity settings.
Flexible & Intuitive Control Hub
- Modular design with customizable touch panels and expansion bays for seamless integration of navigation, radar, and communication systems.
- Supports multiple high-brightness displays (1000nit+) for clear visibility in direct sunlight.
Built for Extreme Conditions
- Wide operating temperature range (-40°C to 70°C) with anti-condensation protection.
Comprehensive EMI shielding ensures stable performance in electromagnetically complex environments.
- Certified Safety & Reliability
- Tested to MIL-STD-810H for extreme environmental resilience.
Optional ATEX/IECEx certifications available for operation in potentially hazardous atmospheres.
Applications:
- Professional maritime vessel bridge systems
- Offshore energy platform control rooms
- Airport and aviation command towers
- Emergency management and coordination centers
Value Proposition:
“Engineered for continuous, fail-safe control where operational continuity is non-negotiable — from the open sea to the heart of the busiest aviation hubs.”
| Specification Category | Parameter Item | Parameter |
| Certification Compliance | MIL Standards | MIL-STD-810H, MIL-STD-461G, MIL-STD-1472G |
| NATO Standards | STANAG 4154, STANAG 4370 |
| Maritime Certifications | DNV-GL, ABS, LR, IEC 60945 |
| Russian Standards | GOST 15150, GOST 16962 |
| Environmental Indicators | Operating Temperature | -25°C to +70°C (Cold Start -40°C optional) |
| Storage Temperature | -40°C to +85°C |
| Protection Rating | IP65 (Standard) / IP68 (Optional) |
| Vibration Resistance | 5Grms, 5-2000Hz, MIL-STD-810H Method 514.8 |
| Shock Resistance | 40g, 11ms, MIL-STD-810H Method 516.8 |
| Salt Spray Resistance | 1000 hours, MIL-STD-810G Method 509.6 |
| EMI Shielding | ≥60dB, MIL-STD-461G Compliant |
| Electrical Performance | Input Power | 100-240VAC, 50/60Hz / 24VDC (MIL-STD-1275D) |
| Power Consumption | ≤300W (Typical) |
| UPS Backup (Optional) | Online UPS, 30min backup |
| Display Parameters | Screen Size | 19', 22', 24', 27'（Other sizes customizable） |
| Resolution | 1920×1080 (FHD) to 3840×2160 (4K) |
| Brightness | 1000 nits (Sunlight Readable) |
| Touch Option | Capacitive / Resistive / None |
| Physical Specifications | Dimensions (W×H×D) | 482.6mm × 355.6mm × 450mm (19' Rackmount) |
| Weight | 25-40 kg (depending on configuration) |
| Mounting | 19-inch Rackmount / Panel Mount / Custom |
| Interface Configuration | Network | 4× Gigabit Ethernet |
| Serial | 4× RS-232/422/485 (Isolated) |
| USB | 4× USB 3.2 Gen2 Type-A (IP67) |
| Video | 2× DisplayPort, 2× HDMI |
| Expansion | PCIe ×4, Mini-PCIe ×2 |
| MIL Connectors | MIL-DTL-38999 Series (Optional) |
| Reliability | MTBF | >50,000 hours |
| Design Life | 15 years |
| Warranty | 24 months (Standard) |
| Color | MIL Green / Black / White / Custom |
| Certification | CE, FCC, DNV-GL, MIL-STD-810H, etc. |
| Place of Origin
| Hebei, China |
